What is a Network Interface Card? How Does NIC work?

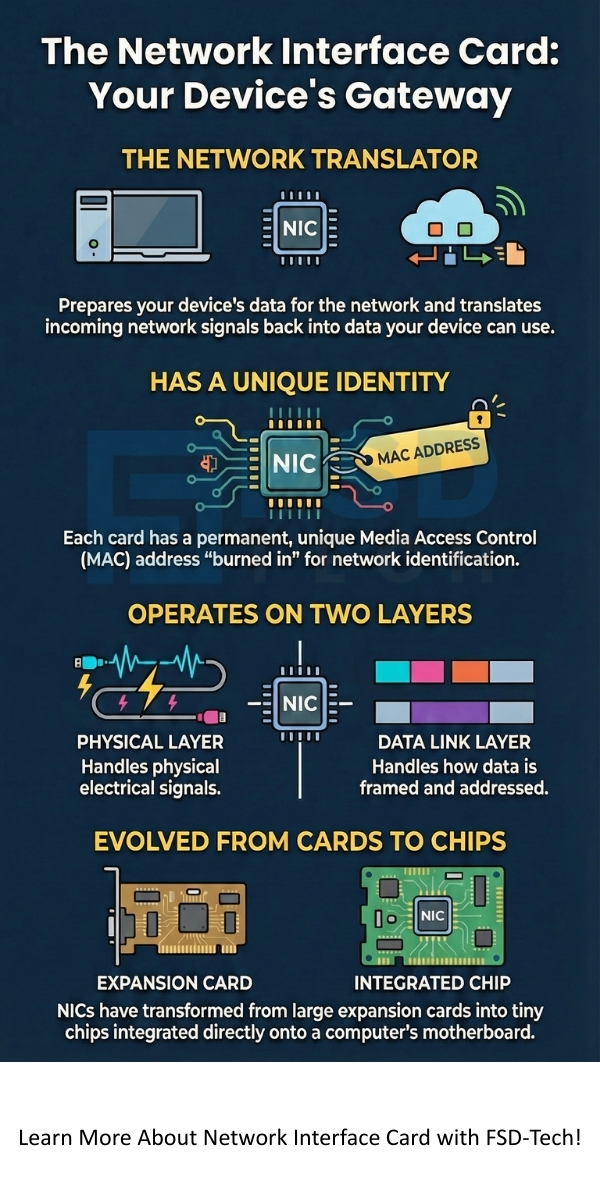

A Network Interface Card (NIC) is a hardware component that allows a computer or other network device to connect to a computer network. The NIC is essential because it acts as a translator, allowing the device to send and receive data signals over the network cable or wirelessly.

Without a network interface card, your computer cannot join a local area network (LAN) or access the larger internet.

It consists of two essential components: the physical layer interface and the data link layer logic. The physical layer handles the actual transmission of electrical or optical signals over the cable. In contrast, the data link layer manages how data is framed and addressed, using a unique MAC address that is burned into the card's firmware. This component is critical for all digital communication.

To know more about the Network Interface Card in detail, including its function, types, and how it works, read below. We will discuss the NIC card in detail along with its vital role in modern networking.

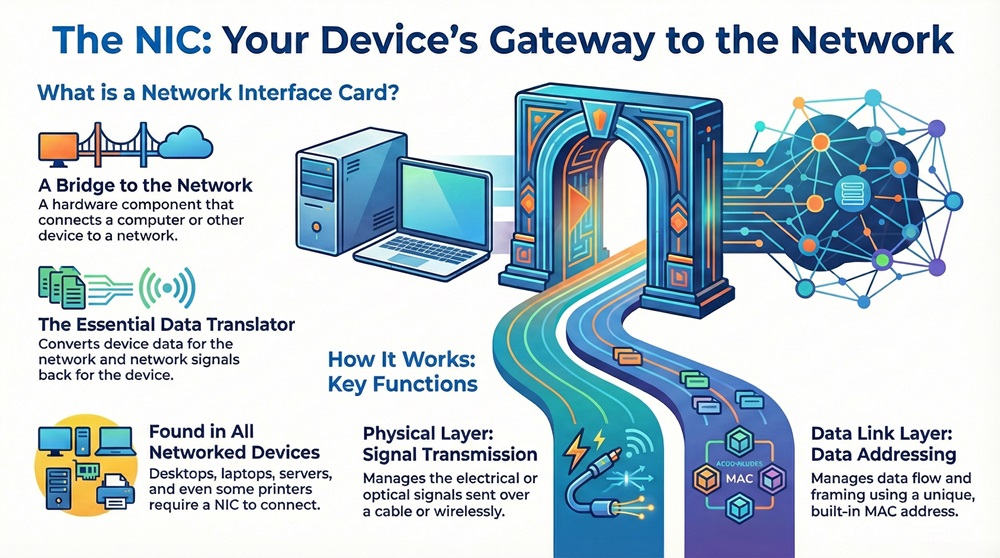

What is a Network Interface Card (NIC)?

The Network Interface Card can be defined as a circuit board or chip that provides the necessary physical connection and data link control logic to allow a data device to communicate over a computer network. Simply put, it is the bridge between your device and the network cable or wireless medium. You might also hear it called a network adapter, LAN card, or simply NIC.

Every device that needs to connect to a network must have a network adapter. This includes desktop computers, servers, laptops, and even certain printers and other peripherals.

The primary function of the NIC card is to prepare data from the device for the network cable and also to convert network signals back into data the device can understand. This process ensures smooth and reliable data transmission.

Moreover, the network interface card is responsible for two critical things. First, it manages the flow of data using the Media Access Control (MAC) address. Second, it uses different physical connectors, such as an RJ45 port for an Ethernet card or an antenna for a wireless NIC. Network cards have changed a lot over the years, moving from large expansion cards to small chips built right onto the computer's motherboard.

NIC MAC Address Protection

Components of a Network Interface Card

A Network Interface Card is composed of several key elements that work together to manage network communication. These components ensure that the card can connect to the host device, process data, and transmit or receive signals accurately. Understanding these parts helps in knowing how the network adapter does its job.

The major components are:

• Controller Chip: This is the brain of the NIC. It handles the data processing, manages the data flow, and works as the interface between the device's operating system and the network. This chip uses the MAC address.
• Transceiver: This part is responsible for sending and receiving data over the network cable or wirelessly. For an Ethernet card, the transceiver converts digital data into electrical signals and vice versa.
• Bus Interface: This is the connector that plugs into the computer's motherboard, like PCI Express (PCIe) or the older PCI slots. It allows the NIC to exchange data directly with the device's memory and central processing unit (CPU).
• MAC Address ROM: This is read-only memory on the chip that permanently stores the unique 48-bit MAC address assigned to the network interface card by the manufacturer. This address is essential for identifying the device on a local network.
• Connectors/Ports: This is the physical interface for the network cable. For example, an Ethernet port (RJ45) is found on a wired network card. A wireless network card has an antenna connector.

The figure below shows the structure of a generic network interface card. Observe that all these parts must work perfectly for the network adapter to function.

Also Read: What Is an L3 Switch? L2 vs L3 & Why You Need Layer 3?

Function of the NIC Card

The NIC card performs several critical functions that are vital for network communication. Basically, the network interface card allows your computer to speak the language of the network. If the NIC card fails, network access stops.

Let us now understand the core functions of the network interface card:

1. Data Encapsulation and Decapsulation: The NIC takes data from the computer's operating system, breaks it into packets, and adds the necessary addressing and control information (encapsulation). Conversely, it takes incoming packets from the network, strips the network information, and reassembles the data for the computer (decapsulation).
2. Transmitting and Receiving Signals: The network adapter converts the device's parallel digital data into a serial format for transmission. It also converts the incoming electrical or optical signals back into digital data. This conversion is why a LAN card is so important.
3. Physical Layer Connection: It provides the physical means to connect to the network medium, such as the RJ45 cable. This is the physical layer of the network model.
4. MAC Addressing: The NIC card uses its unique MAC address to ensure that data packets reach the correct device on the local network. It filters incoming packets, only accepting those addressed to its own MAC address.

Moreover, a modern network interface card often includes features to offload some processing from the device's CPU, like TCP/IP checksum calculations. This makes network communication much faster and frees up the CPU for other tasks.

Types of Network Interface Cards

The landscape of the Network Interface Card is quite diverse, mainly depending on the connection type and the bus interface used. Knowing the different network card types helps you choose the right one for your needs, whether you are building a powerful server or setting up a simple home network.

Following are the main types of NIC card based on connection:

Wired Network Interface Card

A wired NIC is the most common type and uses a cable to connect to the network.

• Ethernet NIC: This is the standard for most local area networks. It uses an RJ45 port to connect to Ethernet cables (like Cat5 or Cat6). Ethernet cards are known for their speed and reliability. Common speeds include 10/100 Mbps, 1 Gbps, 10 Gbps, and faster.
• Fiber Optic NIC: These cards use fiber optic cables and are found mostly in high-speed, long-distance networking, such as in data centers and server rooms. They use different connector types than Ethernet.

Wireless Network Interface Card

A wireless NIC connects to the network without using cables, relying on radio waves.

• Wi-Fi Network Card: These cards are standard in laptops and smartphones. They allow a device to connect to a wireless router using Wi-Fi standards like 802.11n, 802.11ac, or 802.11ax (Wi-Fi 6). They often have an external antenna or an internal chip antenna.

Bus Interface-Based NIC

Network interface card types can also be classified by how they connect to the computer's motherboard:

• Internal NICs: These are expansion cards that plug into slots like PCI Express (PCIe) or are integrated directly onto the motherboard (on-board NICs). This is the most common form in desktops and servers.
• External NICs: These connect via a port like USB or Thunderbolt. They are often used for laptops that need an extra Ethernet port or a faster Wi-Fi network card.

Also Read: What is Datagram Transport Layer Security (DTLS)? How it works?

Working of a Network Interface Card

The process of data transmission through a Network Interface Card involves several layered steps. The network adapter is crucial because it handles the lowest layers of the network model, making network communication possible.

Here, we will see how a NIC card works to send and receive data:

Sending Data

The process for sending data starts when the computer's operating system gives the data to the network adapter.

1. Data Framing: The NIC card breaks the digital data into smaller chunks called frames. It adds a header and a trailer to each frame. The header includes the destination MAC address and the source MAC address.
2. Media Access Control: The network interface card ensures that the network medium is clear before transmitting. For example, in an Ethernet card, the card might use a method like CSMA/CD to avoid collisions with other devices.
3. Digital to Analog Conversion: The NIC's transceiver converts the digital frame data into electrical signals for copper cables or light pulses for fiber optic cables.
4. Transmission: The physical signals are then sent out onto the network cable or as radio waves via the antenna.

Receiving Data

When receiving data, the network interface card performs the reverse steps.

1. Signal Reception: The transceiver picks up the incoming electrical or optical signals from the network.
2. Analog to Digital Conversion: The transceiver converts the analog signals back into digital frames.
3. Address Checking: The NIC checks the destination MAC address in the frame's header. If the address matches the NIC card's unique MAC address, it accepts the frame. If not, it discards the frame.
4. Data Decapsulation: The accepted frame is checked for errors. If it is error-free, the NIC removes the network headers and trailers, and the data is passed up to the computer's operating system for processing.

Advantages

The Network Interface Card brings many significant benefits to network systems. Without a reliable network interface card, the powerful networks we use daily would not be possible.

Following are the major advantages:

1. Enables Network Connectivity: The NIC card is the single most essential component for physically connecting a device to a network. It makes all network communication, whether wired or wireless, a reality.
2. High-Speed Data Transfer: Modern network adapters, especially those using Gigabit Ethernet or PCI Express interfaces, support extremely high data transfer rates. This is vital for applications like video streaming and large file transfers.
3. Unique Device Identification: Every network interface card has a unique, hard-coded MAC address. This unique address simplifies network management and ensures that data is delivered to the correct recipient on the local network.
4. Data Preparation and Reliability: The NIC card handles the framing, error checking, and signaling necessary for reliable communication. It offloads these complex tasks from the main CPU, which improves overall system performance.

For instance, using a dedicated Ethernet card in a server, rather than an older integrated one, can dramatically improve the server's ability to handle high volumes of network traffic without slowing down.

Also Read: Domain Spoofing Explained: How It Works & How to Stop It

Limitations

While the Network Interface Card is essential, it does have certain limitations and challenges. It must be noted that these limitations are often about compatibility or performance bottlenecks.

Below we have discussed some limitations:

1. Speed Bottleneck: The network adapter's maximum speed can become a bottleneck for the entire network connection. If your ISP provides 5 Gbps service but your NIC card only supports Gigabit Ethernet (1 Gbps), you will not get the full speed.
2. Driver Dependency: The network interface card requires specific device drivers to communicate with the operating system. If the driver is outdated or corrupt, the card will fail to function, blocking all network access.
3. Bus Interface Limits: The speed of the connection between the NIC and the motherboard (PCI Express slot) can limit the card's overall performance. If the card is faster than the slot it is plugged into, its full potential cannot be reached.
4. MAC Address Limitations: The MAC address is only useful for local network identification. It does not help in routing data across the internet. Therefore, the NIC needs to work with higher-layer network protocols like TCP/IP for wide-area networking.

Applications of a Network Interface Card

The ubiquitous nature of the Network Interface Card means it is found in virtually every device that connects to a network. The main keyword, Network Interface Card, is relevant across many computing and networking fields.

Let us now discuss the various applications of the network adapter:

1. Personal Computers and Laptops: Every modern PC and laptop has a built-in NIC card, often a combination of a wired Gigabit Ethernet port and a wireless network card for Wi-Fi connectivity.
2. Servers and Data Centers: High-performance, multi-port Ethernet cards or fiber optic network interface cards are used in servers to handle massive amounts of incoming and outgoing data, often supporting speeds of 10 Gbps and higher.
3. Networking Equipment: Devices like routers, switches, and firewalls also use specialized NIC cards to connect to different network segments and handle traffic processing.
4. Embedded Systems and IoT: Smaller, low-power network adapters are integrated into smart devices, industrial sensors, and Internet of Things (IoT) gadgets to allow them to communicate with central management systems over a network.

For example, a security camera system uses a wired Network Interface Card to send video data to a Network Video Recorder (NVR) over the local LAN.

Comparison Table: Wired vs. Wireless NIC

The following table compares the two main network card types based on key factors.

Conclusion

The Network Interface Card is a vital piece of hardware that acts as the necessary intermediary between a digital device and a computer network. It is not just a simple port; it is a sophisticated network adapter that manages the complexities of signal conversion, data framing, and unique device identification using the MAC address. Whether it is a blazing-fast Ethernet card in a server or a convenient wireless NIC in a laptop, the core function remains the same: to facilitate seamless and reliable communication across the network.

Understanding the NIC card's role, from its PCI Express bus connection to its RJ45 port or antenna, helps you appreciate the fundamental building blocks of modern networking. Therefore, when you troubleshoot a connection issue or upgrade your system, the performance and type of Network Interface Card you choose will make a critical difference. Thus, always focus on selecting a network adapter that matches your speed and reliability needs.

We are dedicated to helping you understand complex technology like the Network Interface Card with clear, easy-to-follow content. Our focus is on providing you with the technical knowledge you need to make informed decisions for your networking setup, always prioritizing your success and understanding.

Get Your Free Security Consultation

Key Takeaways

Here are the key takeaways about the Network Interface Card (NIC):

• The NIC is essential hardware that connects a device to a network, handling signal translation and data flow.
• Every NIC card possesses a unique, hard-coded MAC address for device identification on the local network.
• The network adapter converts device digital data into network signals, and converts incoming signals back to data.
• Wired NICs (Ethernet) offer high speed and stability; wireless NICs (Wi-Fi) provide mobility and convenience.
• NICs utilize bus interfaces (PCI Express) to communicate rapidly with the host computer's processor and memory.

Frequently Asked Questions on NIC

What is the difference between a Network Interface Card and a router?

A Network Interface Card is a component inside a single device (like a computer) that allows it to connect to the network. On the other hand, a router is a standalone device that connects multiple networks (like your home LAN and the Internet) and directs traffic between them. The NIC is for device connection; the router is for network connection.

Can a computer have more than one NIC card?

Yes, a computer, especially a server, can have multiple network interface cards. This allows the server to connect to multiple separate networks, provide redundancy, or bond the network cards together for increased bandwidth (a process called link aggregation).

What does the MAC address have to do with the Network Interface Card?

The MAC address (Media Access Control address) is a unique, physical address permanently programmed into the NIC card's hardware by the manufacturer. It is used by the network adapter to uniquely identify the device on a local network segment, ensuring the correct delivery of data frames.
